Videojet Lightfoot™ canning solution

Videojet Lightfoot™ canning solution

An innovative fiber laser solution for high-speed canning applications

Developed to meet the demanding needs of high-speed beverage canning, the Videojet Lightfoot™ canning solution is for manufacturers looking to upgrade their production line with a laser coding system. The comprehensive system is backed by ongoing application support, VideojetConnect™ Remote Service, and the largest service footprint in the industry to deliver the reliability and performance necessary to achieve your production goals.

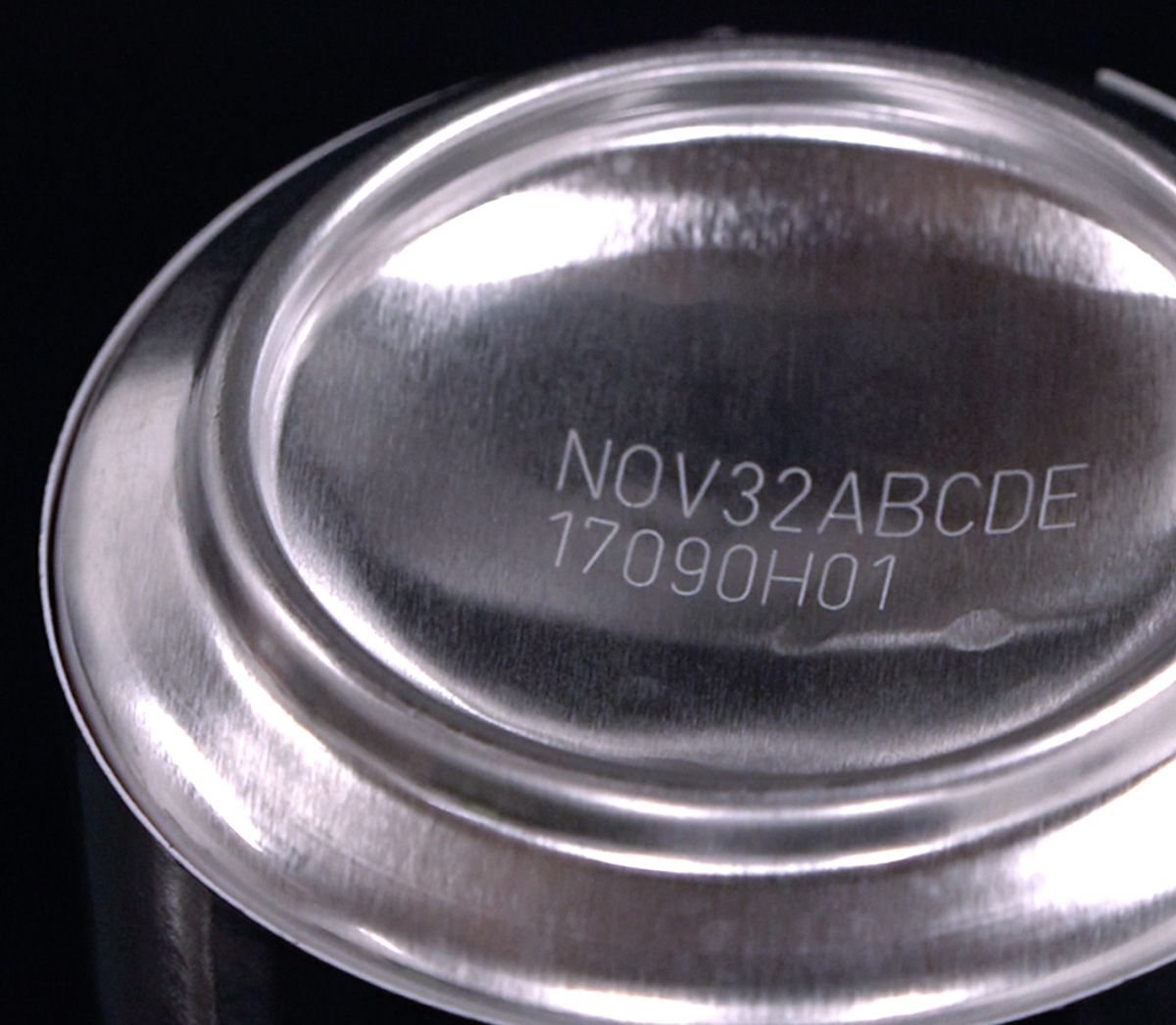

Capable of ultra-fast speeds and robustly designed for harsh environments, the Lightfoot™ canning solution delivers high-quality, precise laser codes in a single all-inclusive system. Keep your operators safe with a class 1 safety design while simultaneously enabling maximum production uptime with dual Lightfoot™ marking heads that provide built-in redundancy.

Contact us for New Equipment Sales: +353 1 267 6687

×

Sign up for our product news and updates

Specs

SpecificationLightfoot Canning Solution
Laser SystemDual 7440 Fiber Laser
Laser TubeSolid State Fiber
Maximum Power2X 30W
Laser CoolingFan
Maximum Line Speed100k cans/hour
Environmental ProtectionIP65, IP69 (laser head)
Tunnel Width Options300mm or 600mm
Beam OutputSteered Beam
Laser Wavelength1.04 – 1.09 µm
Focal Distance Options112.5 mm (4.43 in)
Standard I/O ConnectivityProduct Detect, Line Encoder, Fume Extraction
Optional User InterfaceTCS+, CLARiTY™ Laser Controller, Smart Graph
Plant Air UsedNo
Certifications/ApprovalsEtherNetIP DOC, ProfiNet/PNO certificate, CE

Benefits

Tailor-made for canning

  • Achieve marking speeds up to 100,000 cans per hour*
  • Optimise for washdown with the IP65 rated cabinet
  • Handle harsh humid or sugar-laden environments easily with IP69 rated marking heads
  • Keep the line running with built in redundancy from dual marking heads

*Speed capacity will vary based on application requirements

Complete solution

  • Ensure operator safety with a sealed enclosure that blocks all optical radiation
  • Reduce cleaning needs with an air knife that prevents dust build-up on the marking head exit beam
  • Connect to common line integration or code management solutions with standard industry protocols
  • Maximise your productivity with included VideojetConnect™ Remote Service
