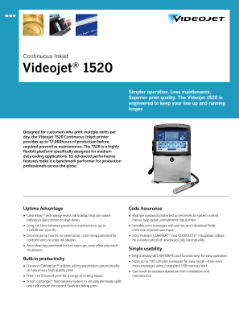

Videojet 1520 Continuous Inkjet Printer

Specification	Value
Printheads	1
Inks	Dye Based
Maximum Lines of Print	5
Maximum Line Speed (1)	279 m/min (914 ft/min)
Environmental Protection	IP55 (IP65 optional)
Core Life (Maintenance Interval)	Up to 12,000 hours
Umbilical Length	3 m (9.8 ft) optional 6 m (19.6 ft)
Message Storage Capability	100
Smart Cartridge™	Included
Plug and Play Printhead Modules	Included
USB	Included
Communications	Ethernet and RS-232 Serial
Positive Air	Included
Expanded I/O Ports and Control	#
Display (User Interface)	LCD with membrane keyboard

# Optional

(1) Based upon single line, 10 characters per inch

High quality print at speeds for a range of applications:

• Dynamic Calibration™ adjusts jetting parameters automatically to help ensure high quality print
• Print 1 to 5 lines of print for a range of coding needs:
  • Single line max speed = 279 m/min (914 ft/min)
  • Dual line max speed = 81 m/min (267 ft/min)
  • Tri-line max speed = 36 m/min (119 ft/min)

Engineered for extended runs; Uptime Advantage via:

• CleanFlow™ technology resists ink buildup that can cause ordinary inkjet printers to shut down
• Long run time between preventive maintenance; up to 12,000 hour core life
• Internal pump means no external air, minimising potential for contaminants to enter ink stream
• Auto cleaning printhead for fast start-ups, even after extended shutdowns

No mess, no waste fluid delivery:

• Make-up consumption as low as 2.4 ml/hour
• Smart Cartridge™ fluid delivery system to virtually eliminate spills and help ensure the correct fluids are being used

Simple Usability via Videojet standard CIJ interface:

• Bright display with WYSIWYG and function keys for easy operation
• User levels to separate operation from installation and maintenance
• Prompted user fields to help reduce coding errors
